Description
Ditch the manual gate duty with this secure and convenient solar-powered automatic gate opener. This system can handle heavy gates up to 10 meters long and weighing 600kg. It operates smoothly with gentle start and stop features, and prioritises safety with automatic stop or reverse if it detects an obstruction. No worries about power outages either, as an emergency release key allows manual gate operation. For added convenience, you can program the auto-close feature between 0-99 seconds. The weather and dust resistant control box ensures reliable operation, and two programmable remote controls come included. This versatile system works with various gate types, from steel and wood to vinyl, in panel, tube, or even chain-link styles.

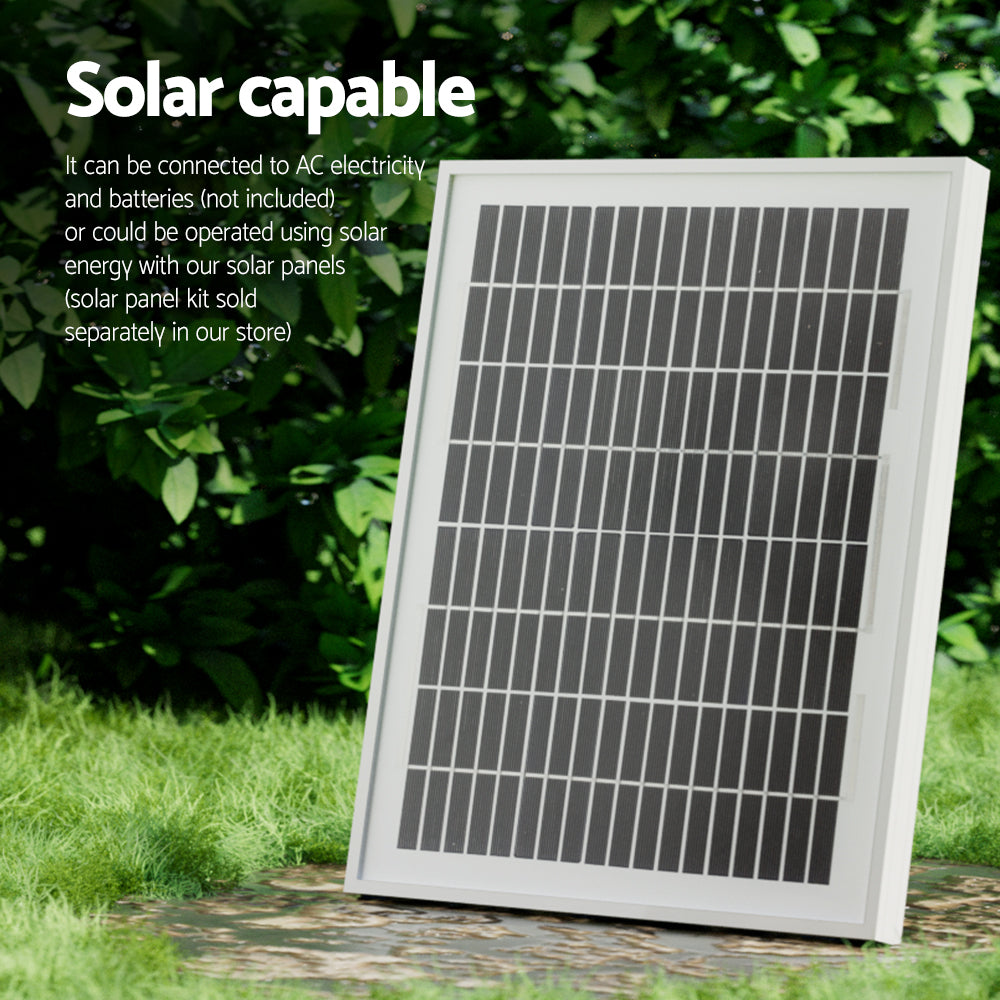

Note: It is recommended that this model be connected to the mains with the 10w solar kit (not included) acting as backup but with the 20w or 40w solar kit(not included) as the main power.
Features
Electric gate opener
Handles gate weighing up to 600kg and 10m long
Optional push to open bracket for gate opening outwards
Gentle start and stop features
Automatically stops or reverses when obstruction is detected

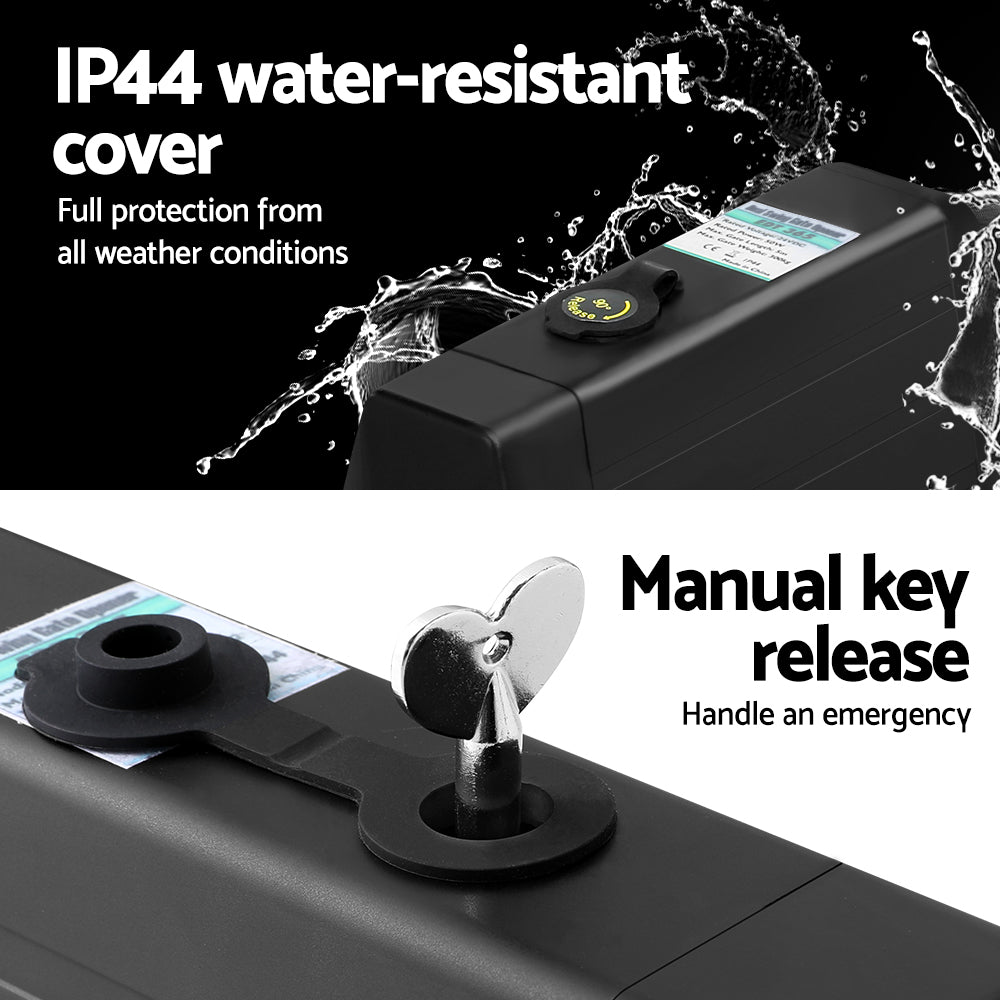

Emergency release key in case of power failure
Programmable auto-close feature (adjustable between 0-99s)
Weather and dust resistant control box
Comes with 3 programmable remote controls
Versatile for steel, wood, vinyl gates in panel, tube, chain-link styles use
Specifications:
Motor voltage: 24V DC
Motor power : 50W/arm
Max. gate weight: 300kg/arm
Max gate length: 10m
Actuator speed: 20mm/s

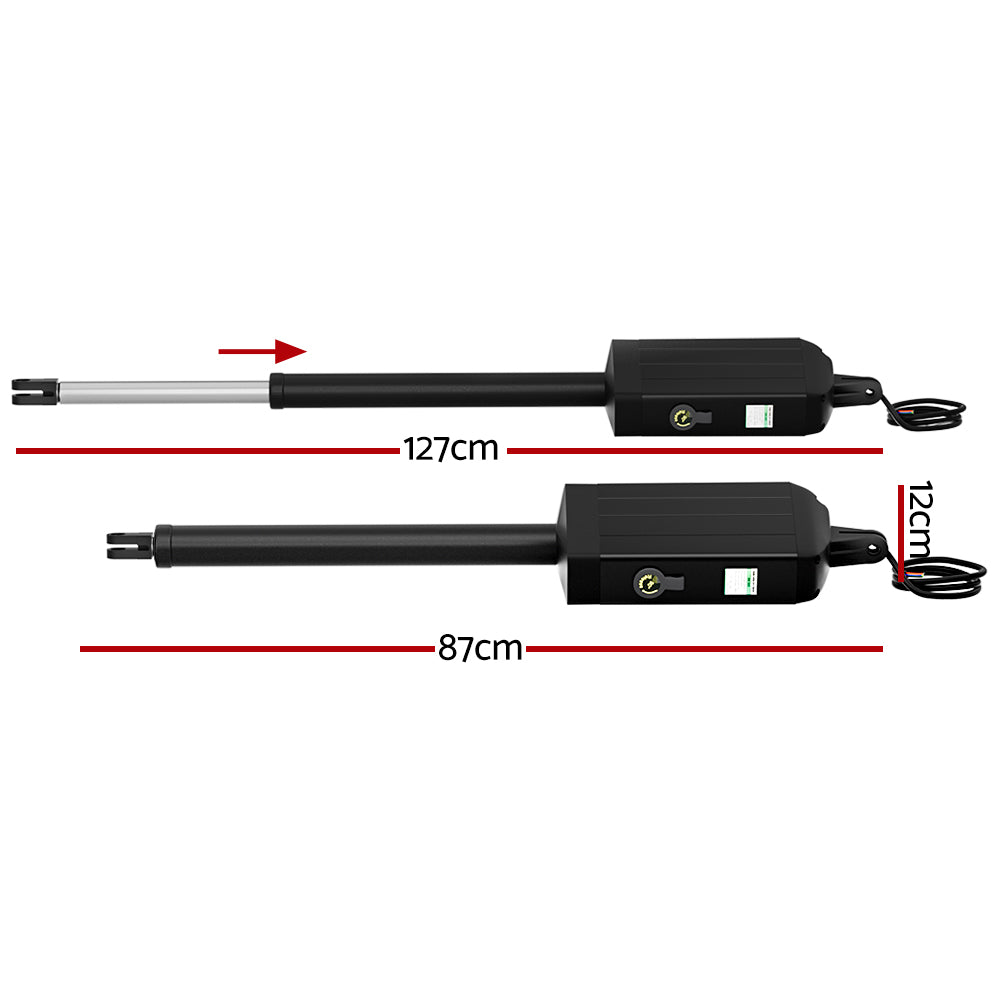

Actuator travel : 385mm
Operating temperature: -22℃~ +55℃
Protection class: IP44
Remote control: 3
Remote operating range: 30m
Remote control battery: Alkaline zinc manganese battery 12V 27A
Assembly required: Yes
No.of package: 1

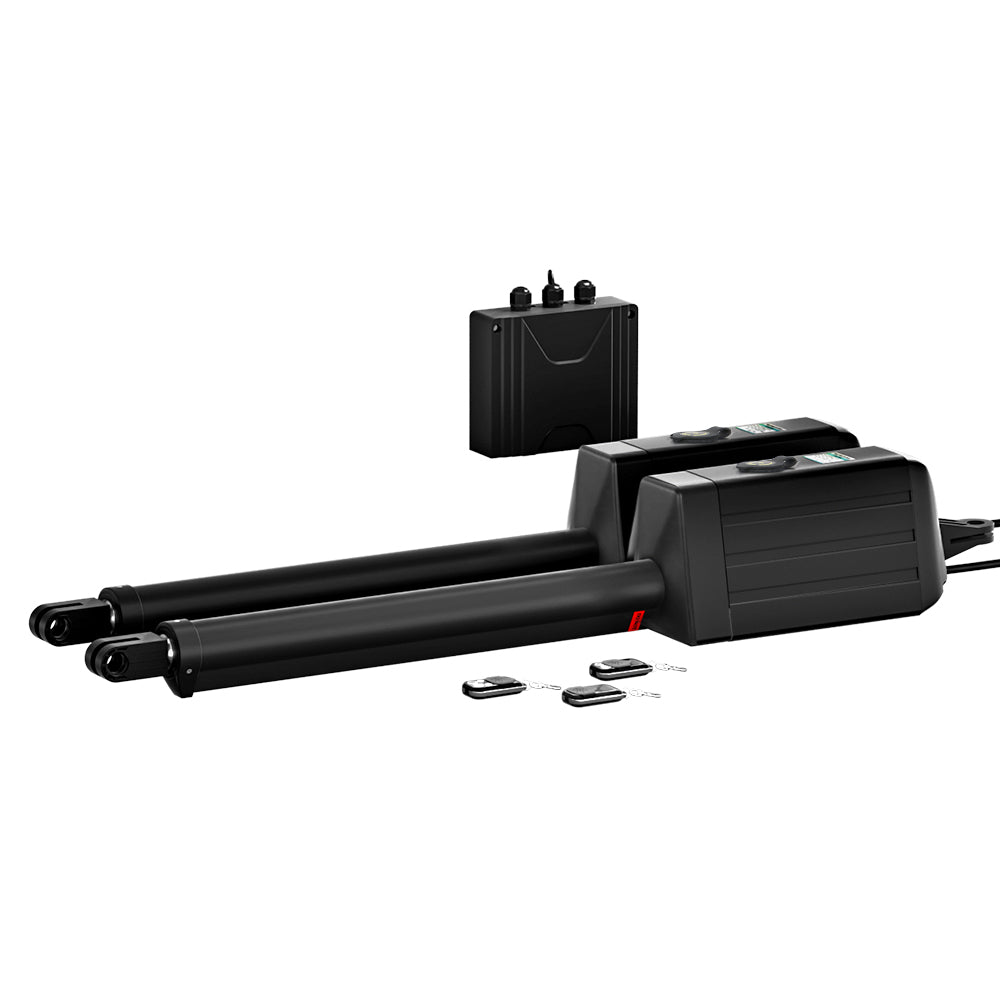

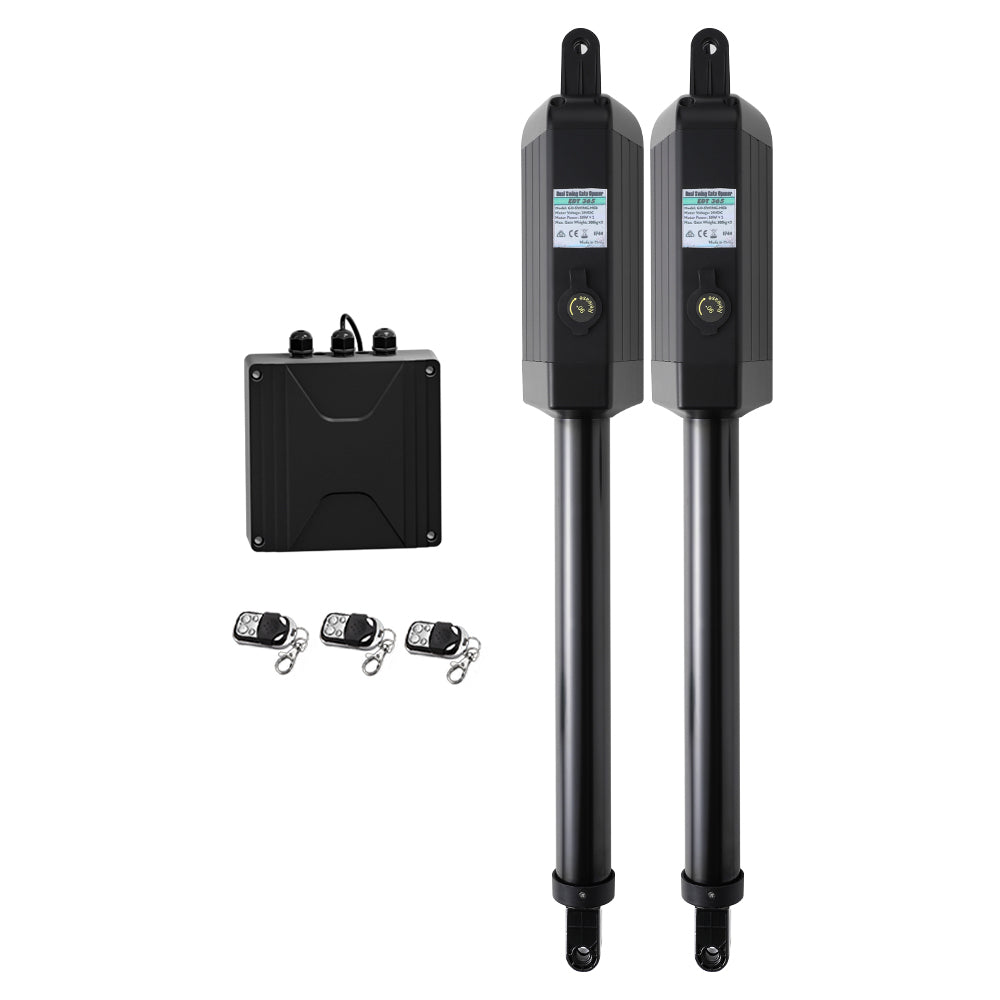

Package Content
Lockmaster Gate Opener Arm X2
Remote control X3
Installation Accessories X1
Control Box X1
User Manual X1
This product comes with 1 year warranty
